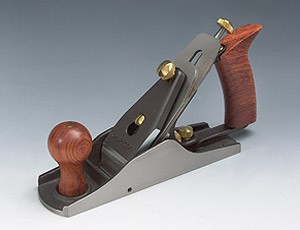

Veritas silityshöylä No 4, PM-V11 terä

 Due to its versatility, the #4 smooth plane is the most commonly used bench plane. It is the ideal size for general smoothing, finish work, trimming parts and other odd jobs. It has enough mass to cut smoothly but is light enough to use without fatigue. Like all our Veritas bench planes, the #4 smooth plane incorporates a frog that extends all the way to the sole. This unique design provides complete blade support, reducing chatter and allows quick mouth adjustment. It can be closed to a narrow slit for fine shavings and minimum tear-out, or opened for heavier cuts, all without removing the lever cap or other parts; just loosen two screws and set the opening with the thumb wheel. The body is fully stress-relieved ductile cast iron. The surface-ground 9-1/2" x 2-1/2" sole is flat and square to the sides, with extra-large side wings for stable shooting. The bubinga front knob and rear tote provide excellent control and comfort. A combined feed and lateral adjustment mechanism make blade setting easy and accurate. The 2" wide lapped blade is a full 1/8" thick.



• Sole is 9-1/2" long and flat with square sides; extra-large side wings make for stable shooting
• Body made from stress-relieved ductile cast iron
• Frog extends to sole to support blade and reduce blade chatter
• Mouth opening can be adjusted without removing lever cap
• Combined feed and lateral adjustment knob makes blade setting easy and accurate
• Set screws in sides prevent blade from shifting and provide true lateral adjustment
• Blade is 2" wide, 1/8" thick, made of either A2 or O1 or PM-V11 tool steel and lapped on non-bevel side to a flatness tolerance of 0.0002" or better over working surface; average roughness surface finish of 5 microinches (0.000005") or better
• Weighs 4 lb 6 oz
• Patented
