Axminster pöytäsirkkeli AT315SB liuku- ja jatkopöydällä
Laite toimitetaan suoraan Englannista asiakkaalle ja rahtikulut veloitetaan erikseen. Kysy rahtihintaa!
2620,00 €
- Tuotekoodi: AX717203
kpl

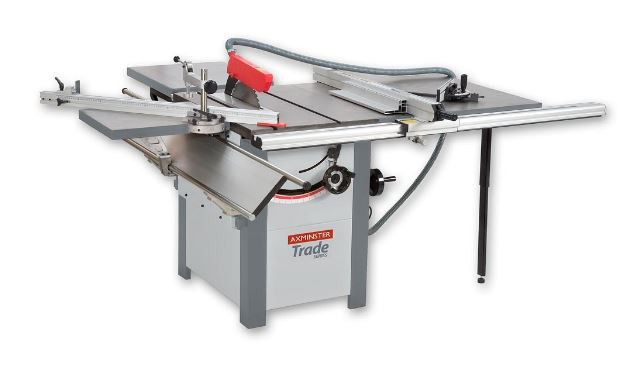

The Axminster AW12SBSB2 315mm Saw Bench is robustly made and constructed largely from cast iron and heavy gauge sheet steel. It has large cutting capacities and is a good choice for the trade workshop. The 315mm blade gives a cutting depth of up to 100mm and is amply powered by a 3kW 1ph induction motor. The cast iron table gives great strength and rigidity as well as providing a smooth working surface. A full length rip fence, locked onto rails at the front and back of the table, and also with a micro positioning adjustment ensures straight rip cuts. A mitre fence slides in a T-slot groove in the table. Both the blade height and tilt controls are conveniently located and lock in position.
The standard saw has a steel right hand side support table included, this gives 650mm cut to the fence, allowing full sized boards to be cut lengthways. A pressed steel feed-off table is also supplied. Dust extraction is provided on both the crown guard and under the blade for efficient dust control, a 1,000m³/hr extractor is recommended. A side access door is fitted to give easy access for maintenance. Supplied with an Axcaliber 60T TCT general purpose blade. Please note: a 16amp supply will be required. This machine is compact in size but ready for work in the home or light trade workshop.
Further options are available: (1) a kit of two cast iron extension tables that can be fitted either one each side or both to the right of the blade, complete with longer fence rails; (2) a fully functioning sliding table kit to allow large board materials to be cut. When both options are fitted this saw bench becomes a very useful machine for most jobs in the workshop.
There is also a complete kit version that includes all of the above at a moderate saving of cost.
SPECIFICATION
Blade Dia\Bore 315mm \ 30 mm
Blade Tilt 0-45°
Dust Extraction Outlet 100 mm
Max Depth of Cut @ 45deg 75 mm
Max Depth of Cut @ 90deg 100 mm
Max Width of Cut with Fence 1,160mm with optional table extension set
Min Extraction Airflow Required 1,000m³/hr
Model AW12BSB2
Nett Weight 215 kg
Overall L x W x H 2,030 x 840 x 865 mm
Power 3kW 230V 1ph
Rating Trade
Speed 4,000 rpm
Table Height 865 mm
Table Size 800 x 870 mm incl side table
Table Size With Extensions 800 x 1,480 mm
Voltage 230V
The standard saw has a steel right hand side support table included, this gives 650mm cut to the fence, allowing full sized boards to be cut lengthways. A pressed steel feed-off table is also supplied. Dust extraction is provided on both the crown guard and under the blade for efficient dust control, a 1,000m³/hr extractor is recommended. A side access door is fitted to give easy access for maintenance. Supplied with an Axcaliber 60T TCT general purpose blade. Please note: a 16amp supply will be required. This machine is compact in size but ready for work in the home or light trade workshop.
Further options are available: (1) a kit of two cast iron extension tables that can be fitted either one each side or both to the right of the blade, complete with longer fence rails; (2) a fully functioning sliding table kit to allow large board materials to be cut. When both options are fitted this saw bench becomes a very useful machine for most jobs in the workshop.
There is also a complete kit version that includes all of the above at a moderate saving of cost.
SPECIFICATION
Blade Dia\Bore 315mm \ 30 mm
Blade Tilt 0-45°
Dust Extraction Outlet 100 mm
Max Depth of Cut @ 45deg 75 mm
Max Depth of Cut @ 90deg 100 mm
Max Width of Cut with Fence 1,160mm with optional table extension set
Min Extraction Airflow Required 1,000m³/hr
Model AW12BSB2
Nett Weight 215 kg
Overall L x W x H 2,030 x 840 x 865 mm
Power 3kW 230V 1ph
Rating Trade
Speed 4,000 rpm
Table Height 865 mm
Table Size 800 x 870 mm incl side table
Table Size With Extensions 800 x 1,480 mm
Voltage 230V
