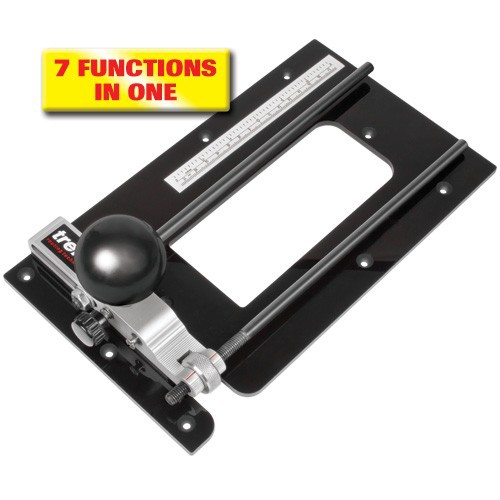

Combination router base
Rod size 8 mmRod centres 78 mm to 130 mmMortising width min. 50 mmMortising width max. 200 mmAnti-tilt height max. 80 mmAnti-tilt height min. 8 mmLateral adjustment 110 mmMicro adjustment 40 mmOne revolution 1.25 mmCircle dimensions using 6.35mm cutter and measured from outside edge of hole: Circle radius min. 19 mmCircle diameter min. 38 mmCircle radius max. 224 mmCircle diameter max. 448 mmLength 285 mmWidth 175 mmThickness 5 mmCutter diameter max. possible 40 mm
185,00 €
- Tuotekoodi: CRB
- EAN: 5027654555088
kpl
Rod size 8 mm
Rod centres 78 mm to 130 mm
Mortising width min. 50 mm
Mortising width max. 200 mm
Anti-tilt height max. 80 mm
Anti-tilt height min. 8 mm
Lateral adjustment 110 mm
Micro adjustment 40 mm
One revolution 1.25 mm
Circle dimensions using 6.35mm cutter and measured from outside edge of hole:
Circle radius min. 19 mm
Circle diameter min. 38 mm
Circle radius max. 224 mm
Circle diameter max. 448 mm
Length 285 mm
Width 175 mm
Thickness 5 mm
Cutter diameter max. possible 40 mm
Rod centres 78 mm to 130 mm
Mortising width min. 50 mm
Mortising width max. 200 mm
Anti-tilt height max. 80 mm
Anti-tilt height min. 8 mm
Lateral adjustment 110 mm
Micro adjustment 40 mm
One revolution 1.25 mm
Circle dimensions using 6.35mm cutter and measured from outside edge of hole:
Circle radius min. 19 mm
Circle diameter min. 38 mm
Circle radius max. 224 mm
Circle diameter max. 448 mm
Length 285 mm
Width 175 mm
Thickness 5 mm
Cutter diameter max. possible 40 mm
