Jyrsinhissi Kregin jyrsinpöytään

Mechanical routing lift with innovative reduction plate system for maximum hole size selection

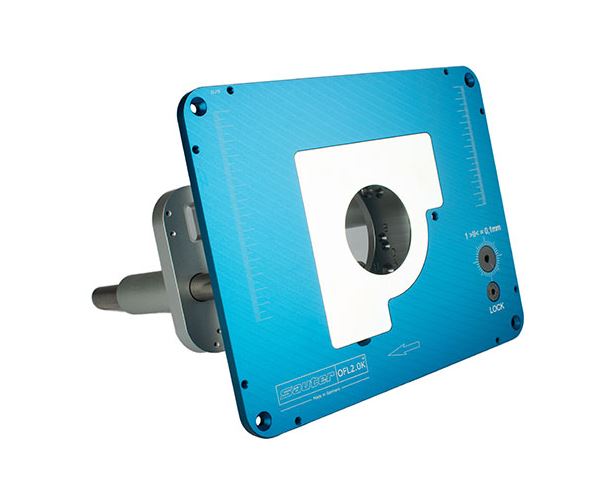

The OFL2.0K router lift - the variant in the format of the Kreg inlay plates - also of German origin, impresses with its high-class, massive materiality, 1A processing and sophisticated function. -Genuine Made in Germany!

Technical data:

• Distance from top edge of insert plate to base plate of mounted router: 15 mm (loss of routing depth)
• Dimension of insert plate: 298 x 235 x 9 mm
• Corner radius of insert plate: 17.5 mm
• Height adjustment travel/revolution: 4 mm
• Max. Setting travel: 101 mm
• Max. Cutter diameter: 86 mm
• Weight: approx. 4.5 kg

Advantages and properties:

• Quality from Germany
  High quality, solid construction. Construction made of high-quality aluminium and steel.
• Fine height adjustment to 1/10mm
  Height fine adjustment extremely accurately adjustable, with exact scaling and effective spindle locking, conveniently operated via hexagon socket screw.
• Smooth-running spindle columns
  Enable stepless and exact height fine adjustment.
• Compatible with common routing machines
  The OFL2.0K is compatible with a wide range of standard routers. You will find all models below.
• Assembly made easy
  Simple mounting of the router to the OFL2.0K through pre-drilled mounting holes (drilling pattern in operating instructions).
• routing also without rip fence
  2 holes for free routing stop pin allow free routing of e.g. round workpieces without rip fence (see optional accessories separately - not included).
• Absolutely flat
  Easy levelling of OFL2.0K by means of levelling screws in the insert plate. Optionally, a framework for a permanent level adjustment can be acquired.
• No own drillings necessary
  Mounting holes (countersunk head) for fast routing table installation are already pre-drilled.
• Laser scaling
  Millimetre scale on the surface for exact alignment of the rip fence.

Directly compatible routers:

• Bosch: POF1200AE, POF1300, POF1400ACE
• Bosch: GOF1250CE/LCE, GMF1600CE, GOF1600CE
• Casals: CT2200VCE
• DeWalt: DW615, DW621, DW622, DW624, DW625
• Elu: MOF96(E), MOF97(E), MOF131, MOF177(E), MOF 177/02 Type 2
• Festool: OF1400
• Freud: FT2000 (Diabolo), FT2200VCE
• Mafell: LO 65 EC
• Makita: RP1110
• Perles: OF3-808(RE), OF9(E)
• Trend: T5, T10, T11
• Würth: OF1100E
  • If your router is not compatible, we offer the possibility to carry out individually fitting mounting holes --> see customer-specific hole (Art. SA-99600007).
    • Exceptions/not suitable: ELU MOF 96/02 (no threaded holes available), Festool OF2000, OF2200 and DeWalt DW626 (These are too large in circumference and can be integrated into the Lift construction cannot be fitted).

Scope of delivery:

• 1x router lift OFL2.0K
• 2x reduction plates Ø 32 and 68 mm
• 1x hexagon screwdriver 5x150 mm
• 4x fixing screws M6x50, washers and nuts
• 18x mounting screws (various sizes)
• 8x levelling screws M5x8
• 1x instruction manual (german)

Optional accessories:

• Height gauge: High-quality, magnetic setting gauge for tool-free operation with scale (Art. No. SA-99600004)
• Mounting set: 20-piece mounting set with 4x corner plates, 4x countersunk screws and 12x wood screws (Art. No. SA-99600005)
• Levelling frame: Frame made of sheet steel for plate levelling (Art.No. SA-99600006)
• Hole for mounting plate: Customer-specific hole for not pre-drilled routers (Art. No. SA-99600007)
• Digital measuring instrument: Digital altimeter for 1/1000mm accuracy routing depth adjustment (Art. No. WX-WR525)
• Free routing stop with protective shield: Curve or free routing kit for routing without rip fence (Art. No. SA-RTS-KIT)
• Compensating pieces for routing table precision insert plate: four Insert plate compensation pieces for Kreg insert plates PRS4034 / PRS 4038 (Art.No. KR-PRS3040)
