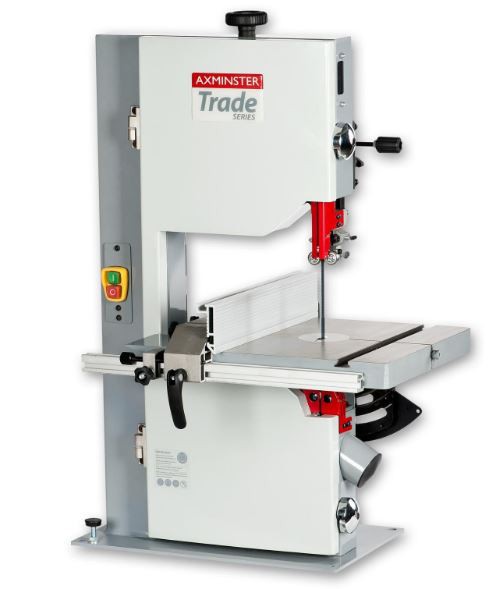

Axminster vannesaha / Trade series BS11 Bandsaw

This benchtop bandsaw is made to exacting standards to encompass all the features found on top quality floor standing machines. Designed in house, we set out to create a bandsaw with many unique features. The one piece frame is made from heavy gauge welded steel and is extremely rigid to withstand high blade tensions. A cast iron deep section table is fitted, featuring a ground table surface and a rack and pinion tilt mechanism with indexing stops for common angles. The heavy gauge alloy rip fence is mounted on a cast alloy bracket which also incorporates a fine width adjustment. The fence is clamped with a cam action lever, easily released to allow swift adjustment. Blade guides are all ball bearing with micro adjustment for accurate control. The top guide is mounted on a steel hexagon bar for stiffness and adjusted for height by a small rack and pinion system. A pair of cast iron band wheels, nicely machined and balanced are driven by a multi V belt with a choice of two speeds. The BS11 features a 750 W fixed speed induction motor, great for cutting all types of wood.

Specification

Bandsaw Blade Length  1,854 mm (73")
Blade Speed  534 & 819 m/min
Dust Extraction Outlet  63 mm
Max Cutting Height  160 mm
Max Width of Cut  250 mm
Max Width of Cut with Fence  220 mm
Min Extraction Airflow Required  390 m³/hr
Model  BS11
Nett Weight  60 kg
Overall L x W x H  590 mm x 540 mm x 850 mm
Power  750 W
Rating Trade
Table Height  340 mm
Table Size  350 mm x 350 mm
Table Tilt  5° - 0° - 45°
Voltage  230 V
